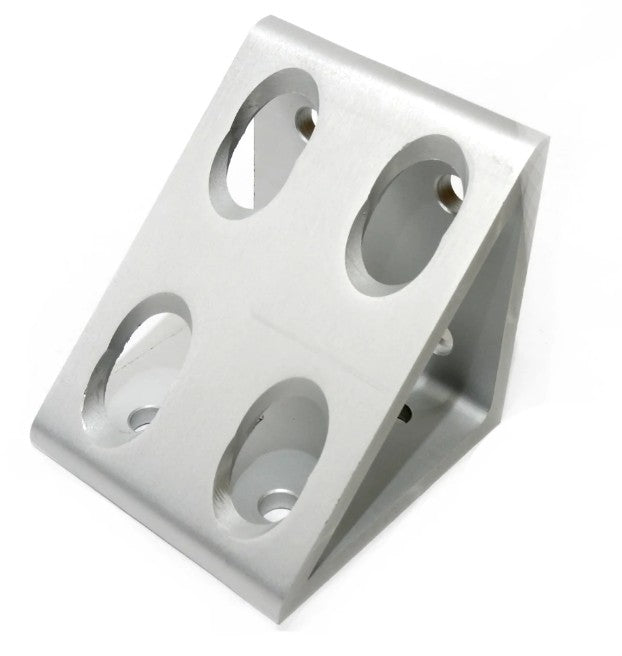

4×4 Hole Gusset Corner Bracket – 40 Series

4×4 Hole Gusset Corner Bracket – 40 Series: Double the Stability, Double the Versatility

The 4×4 Hole Gusset Corner Bracket for 40 Series is a game-changer in robust and versatile hardware components.

Specifically designed to connect 40 Series T-Slot Linear Rails at a 90-degree angle, this bracket is perfect for heavy-duty applications requiring extra stability and adjustability.

Features

• Gusseted Design: The extra material in the gusseted shape enhances the bracket’s strength and stability.
• Double the Stability: With twice as many holes, this bracket offers unparalleled stability and load-bearing capacity.
• Increased Width for More Support: The extra width provides a larger surface area for attachment, further enhancing stability.
• Highly Adjustable: The 4×4 hole configuration allows for more adjustability options.
• 2-Degree Drop-Lock Feature: Tighten the assembly bolts to the required torque to activate this feature, ensuring a secure connection.

Why Choose This Bracket?

• Versatility: This bracket is ideal for both temporary and permanent installations.
• Reliability: Built to last, it offers long-lasting performance.
• Ease of Use: Assembly and disassembly are a breeze, with no need for machining services.

Specifications

• Material: Aluminium 6063-T5
• Compatibility: 40 Series T-Slot Profiles
• Weight: 250g
• Dimensions: 76x80x80mm

Drawings
