BK10 Fixed Ball Screw Support With Lock Collar

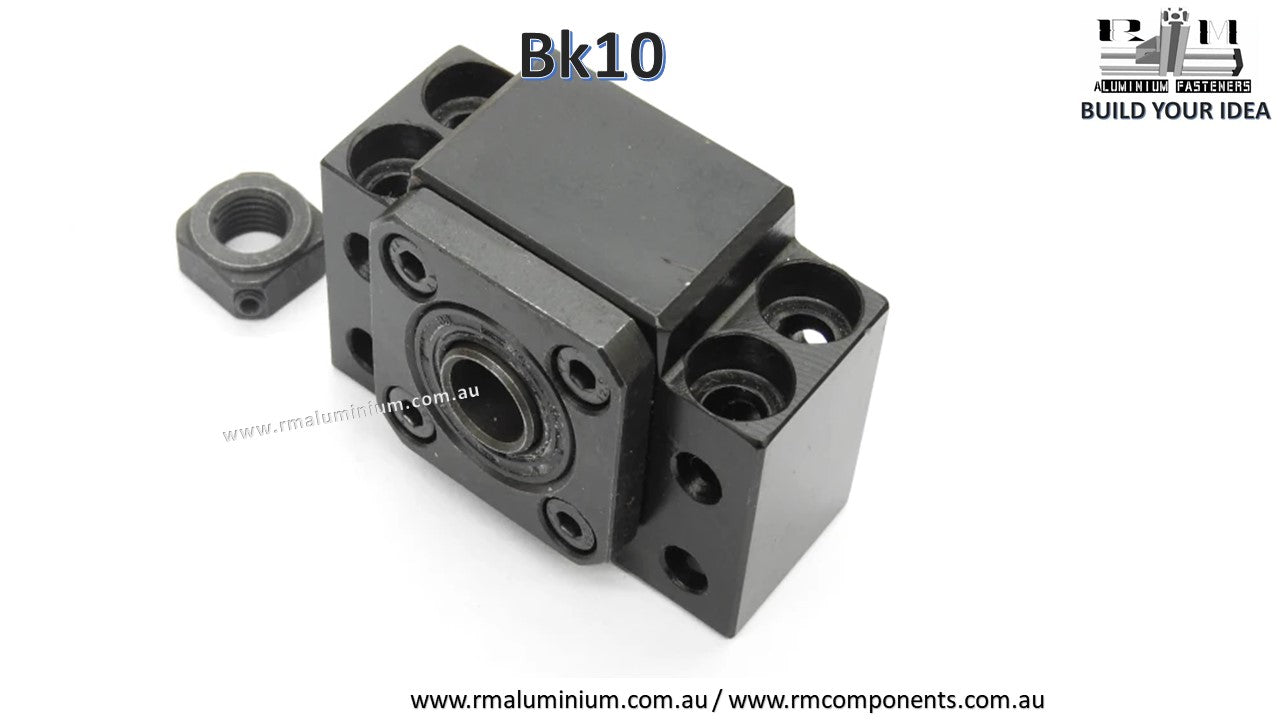

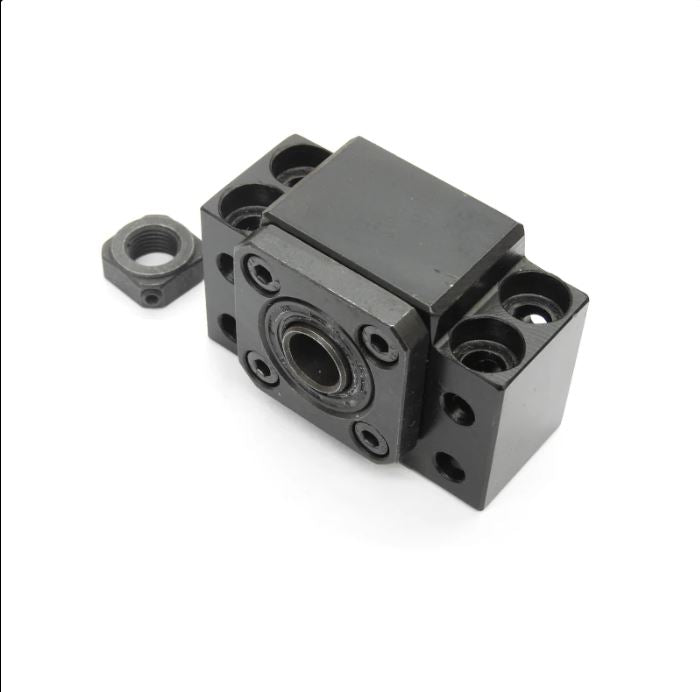

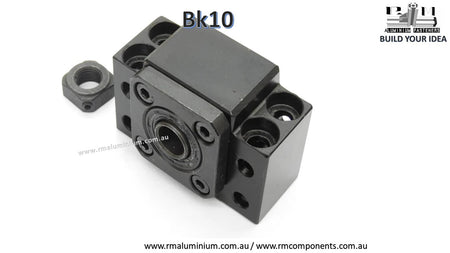

The BK10 fixed ball screw support is used to support the end of the ball screw assembly and is secured with a threaded locking collar. This fixed support is commonly used in the SFU1204 or SFS1210  ball screws and is compatible with our 12mm ball screw kits. The BK10 offers both bottom and face mounting, making them versatile in a wide range of actuators and custom gantry systems.

BK10 Fixed Ball Screw Support Engineering Drawing

Please note the cross-section view of the bearing and bearing block:

1. Housing
2. Bearing
3. Retaining Cover
4. Support ring
5. Seal
6. Lock Collar
7. Lock Collar grub screw

Included:

BK10 ball screw support with lock collar.

Please note:

• This listing is for the fixed ball screw support and lock collar only.
