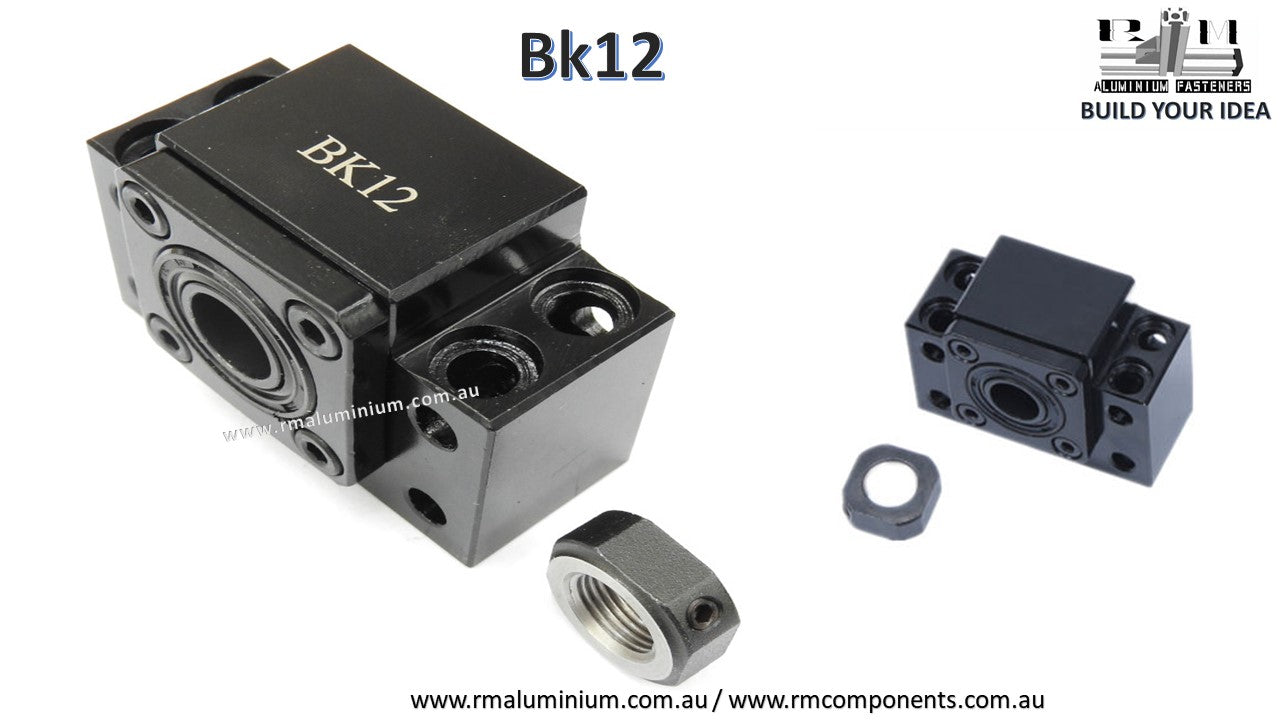

BK12 Fixed Ball Screw Support With Lock Collar

The BK12 fixed ball screw support is used to support the end of the ball screw assembly and is secured with a threaded locking collar. This fixed support is commonly used in the SFU1605 ball screws and is compatible with our 16mm ball screw kits. The BK12 offers both bottom and face mounting, making them versatile is a wide range of actuators and custom gantry systems.

Engineering Drawings

Included:

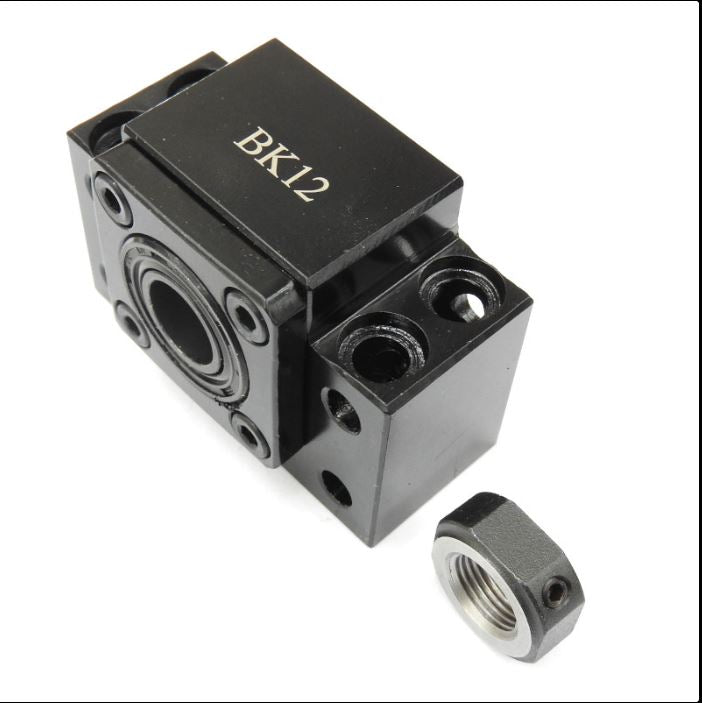

BK12 ball screw support with lock collar.

Please note:

This listing is for the fixed ball screw support and lock collar only.
