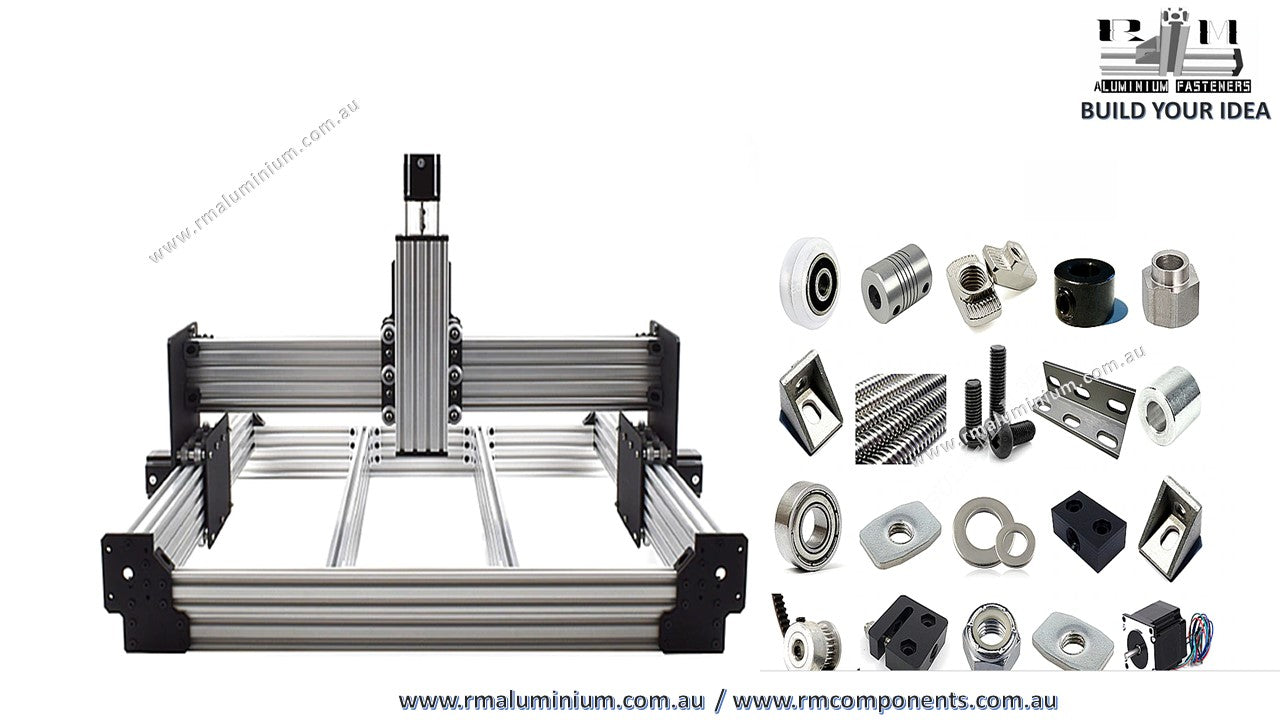

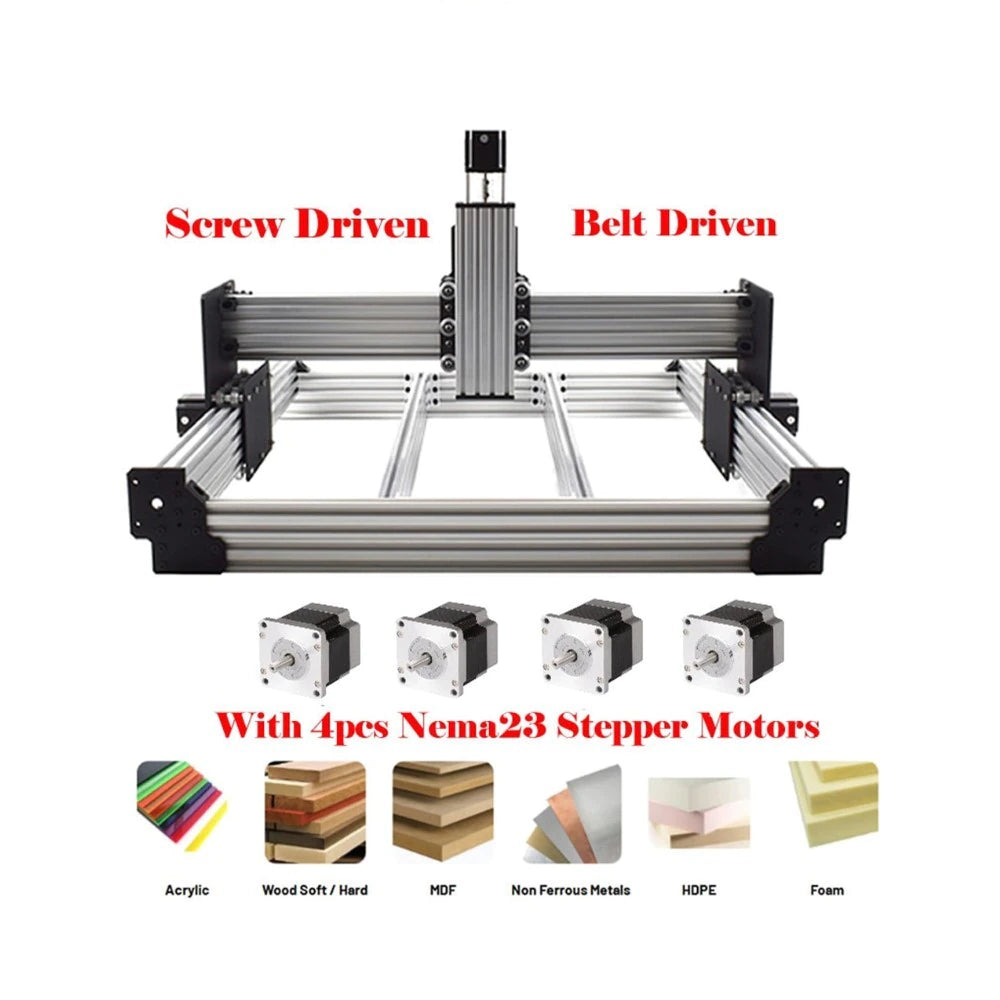

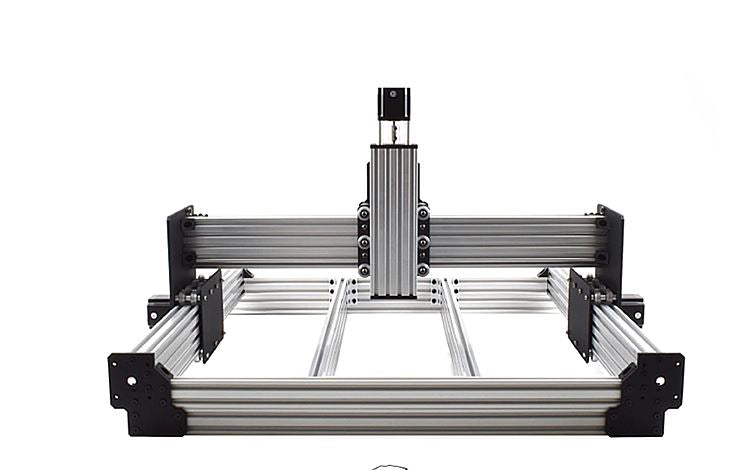

Screw Driven WorkBee Mechanical Kit 1500x1500mm – Silver with Nema 23 stepper Motors

In stock
SKU: RM5274
$1,645.00 AUD
Sale $2,500.00 AUD $1,645.00 AUD

WorkBee CNC Router Mechanical  Kit , Screw Driven with Nema 23 stpepper Motors

Introduction

The CNC router is suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching,
Student Project and Hobby Purposes.

Compatible Material for Cutting/Milling/Engraving:

  • Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam

  • Model and Technical Parameters

  • Frame Size:1500 X 1500 mm .
  • Working area Approximate :1300 X 1270mm

Motion

Drive System - ACME Lead Screws

Linear Guides -Polycarbonate wheels on anodised C-Beam V-Slot Extrusion.

Motors - NEMA23 175oz Stepper Motors (X, Y & Z)

Accuracy - 0.05 - 0.10mm (Screw Driven)

Note - Maximum recommended speed for Lead Screws 1000mm or greater is 400RPM.

Packing list:

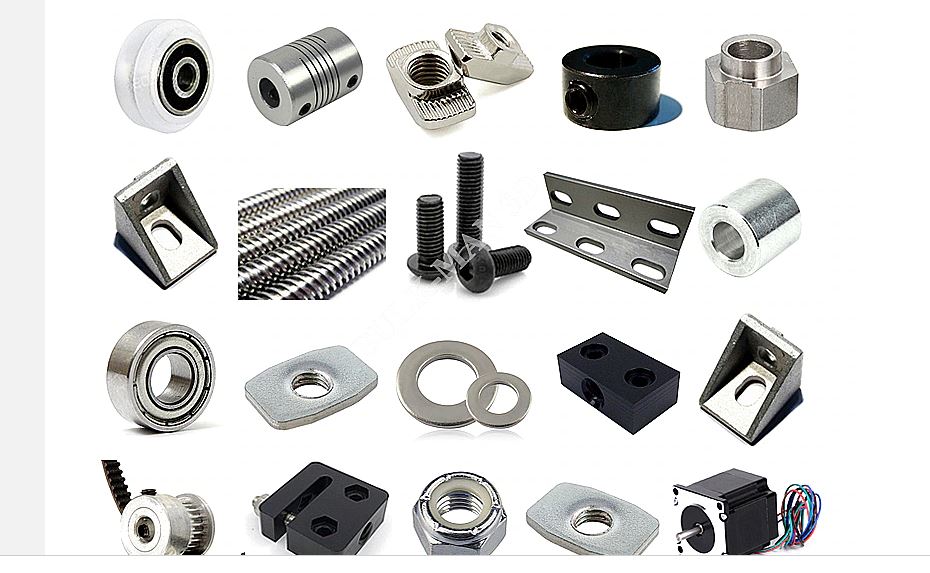

1 x CNC Router frame with all accessories

4 x Nema23 Stepper Motors

1 x PDF Assembly Manual is available by email

If you require Solid frame to keep your machine on top please click  Here.

Please let us know if you have any question



3 axis linear axis with heavy-duty loads ,X and Y axis travel 500mm ,Z axis travel 100mm .

Material: Steel+ Alu.  Screw Dia.16mm   Vertical Load:   0~50kg ,    Horizontal Load:   0~100kg.   Repeatability: 0.05~0.08mm.  Stage Width:  120mm  .Screw Lead: 4mm/10mm.   Moving Speed:  0~300mm/s . Stroke: 100~500mm’



Brand RM
Guide Width or Diameter 40mm
Model Number SW40
Effective Stroke 50-4000mm
Position Accuracy 0.05mm
Screw Precision Grade C7
Screw Type 1605/1610
Stepper Motor Type 57-56
Stepper Motor Driver as to your requirements
Controller as to your requirements
Limit switch 3
Application field 3D printer automated production line robotic arm plasma detector
Applicable industry medical equipment spraying equipment automatic welding series

For more details please refer to the pictures
