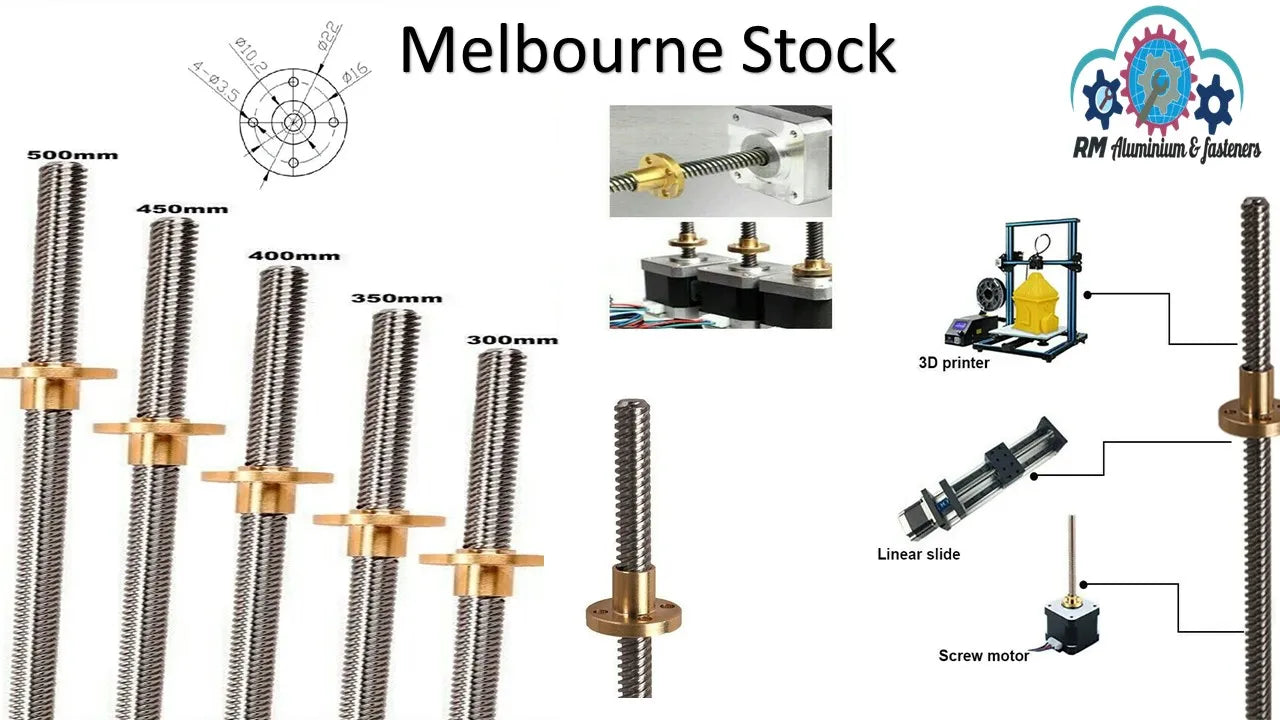

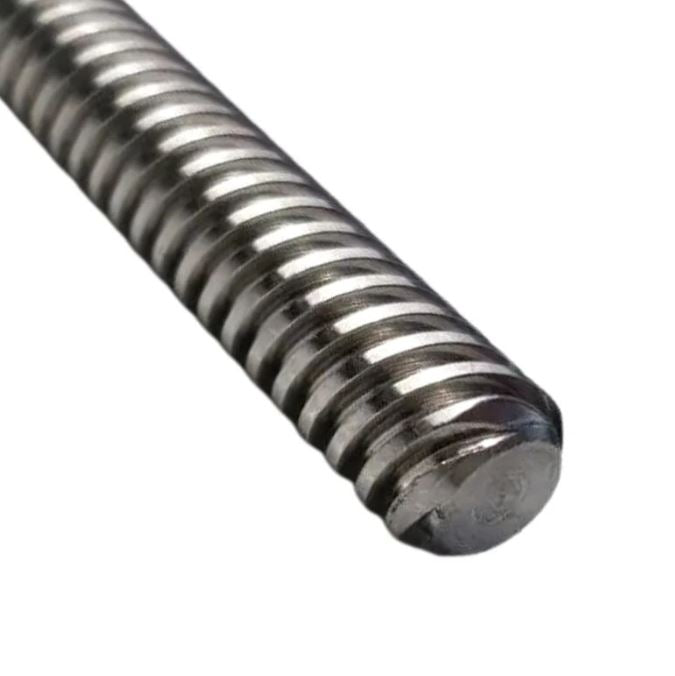

8mm Metric Lead Screw / ACME, 800mm length

This 8mm Metric Lead Screw / ACME has an accuracy of 0.05-0.10mm or better. Leadscrew machines are designed to be accurate,  strong and reliable. Leadscrew transmission requires little ongoing maintenance, with nut-blocks often having a functional life of longer than 3 years if the machine is taken care of.

All of our Leadscrews are ACME thread TR8x8(P2), in basic terms, this means one revolution of the leadscrew will make a nut-block travel four times further than a standard threaded rod which is an only single start. Furthermore, this precision trapezoidal (metric) lead screws pitch and diameter are a perfect combination of high torque and speed.

8mm Metric Lead Screw / ACME is the standard for the OpenBuilds’ style CNC Machines. Equipped with a large diameter that helps eliminate whipping and a high pitch that allows quick moves at 8mm per revolution.  It’s a great power transmission choice for your next build.

• Tr8*8(P2)
• Lead Screw Diameter ∅ 8 (mm)
• Pitch 2 (mm)
• Lead 8 (mm)
• 4 Start
• Length:800mm

package include :1 X lead screw with brass nut.
