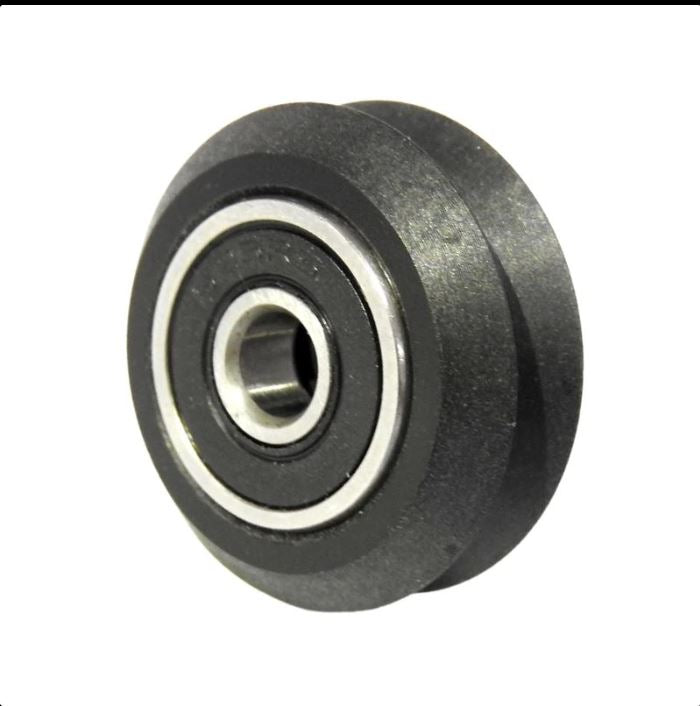

Delrin V-Wheel Kit

These precision-made full-sized wheels are compatible with our V-Slot aluminium extrusion, and can be used to achieve smooth linear motion.

For builds involving a lot of weight or force, you might want to check out our extreme polycarbonate wheels - they're a little pricier again, but much, much stronger!

Specifications

• Material: Delrin, black
• Outer Diameter: 24.0mm
• Inner Diameter: 16.0mm
• Width: 10.2mm
• Rockwell Hardness: M80
• Compressive Strength: 63Mpa

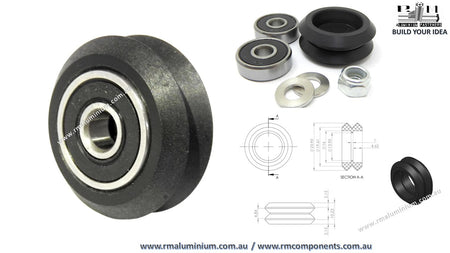

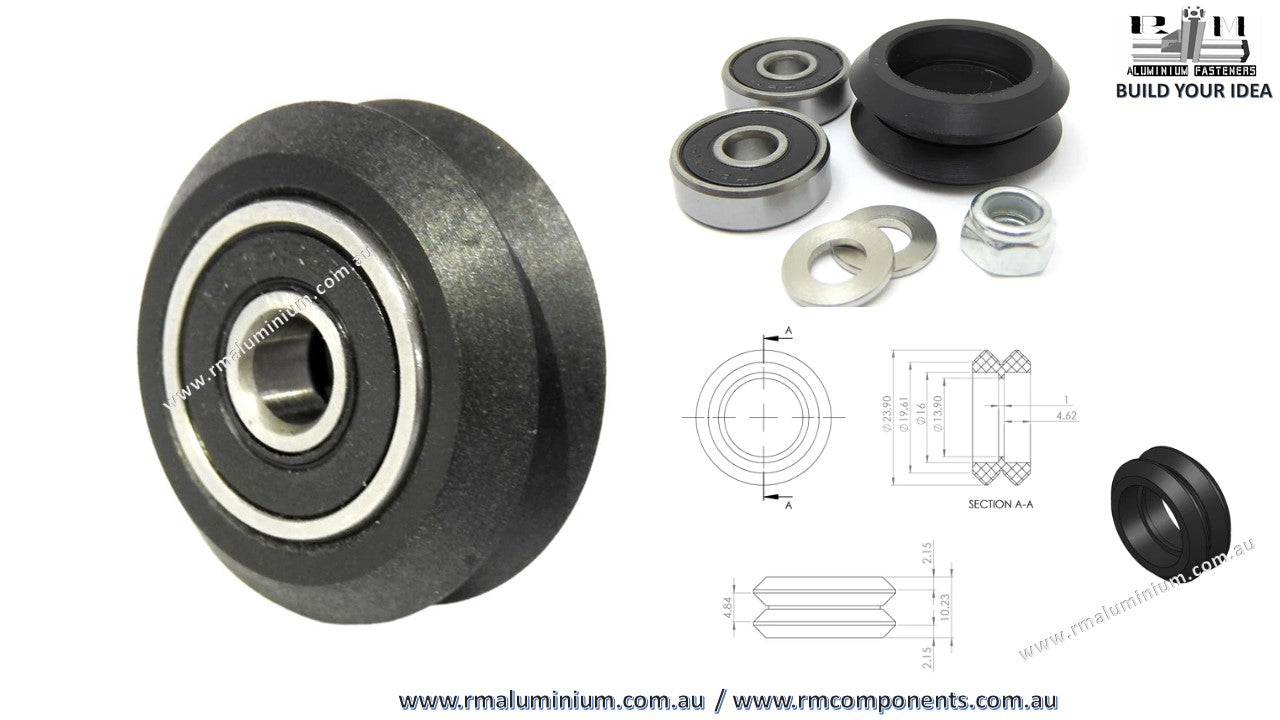

 wheel kit includes:

• 1 x V-Wheel
• 2 x 625-2RS Bearings (5x16x5)
• 2 x 5mm Precision Shim (10x5x1)
• 1 x M5 Hex Locknut
• 1X M5x25mm screw
