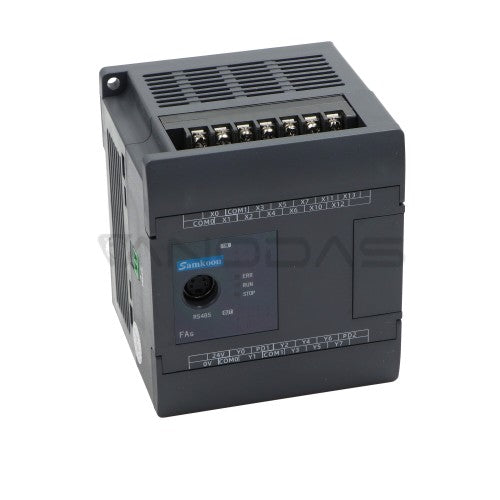

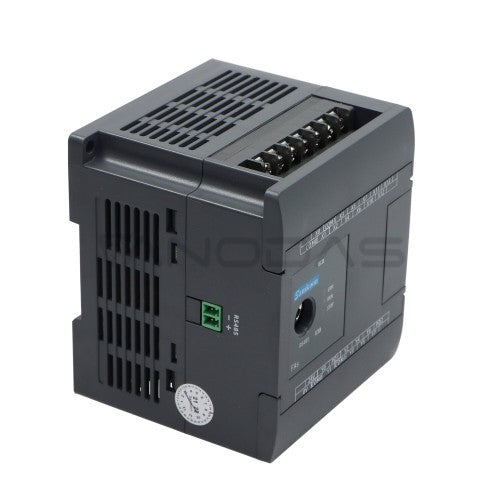

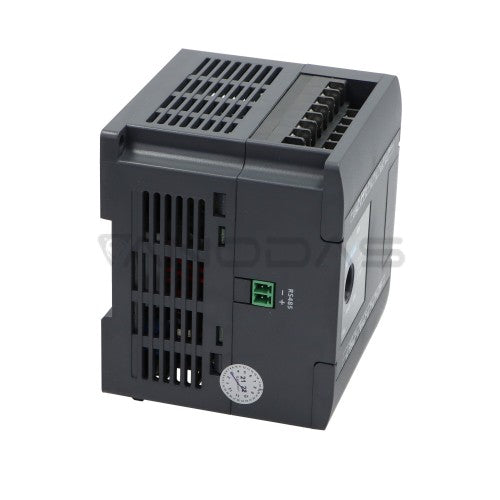

FAs-20MR-AC PLC controller(programmed for the linear gate)

- 12 digital inputs

- 2 high-speed 200 kHz pulse inputs (connecting encoder A, B channels or two high-speed counters)

- 8 relay outputs

- Encoder support

- Power supply 230 VAC 4.2W

- Built-in RS485 port (ModBus), USB (programming)

- Possibility to work with 127 slave devices in the Modbus protocol

- RTC real time clock

- Selection of input polarity using the S/S terminal

- Maximum output load 2 A

- Free SamSoar II software

Weight: 465
Series: Samkoon FAs
Number of entries: 12
Operating temperature °C: 0 ... +55
Number of outputs: 8
Output type: relays
Communication port: RS232/485/USB
Possibility of extension: YES
RTC clock: YES
Dimensions [mm]: 86x97x81
Operating humidity [RH]: 5 ~ 95%
Power supply: 230 VAC
Analog Input: No
Analog output: No
Power consumption: 3.2W
Degree of protection: IP30
Input type: NPN/PNP
Maximum frequency [kHz]: 200
Interpolation type: None
