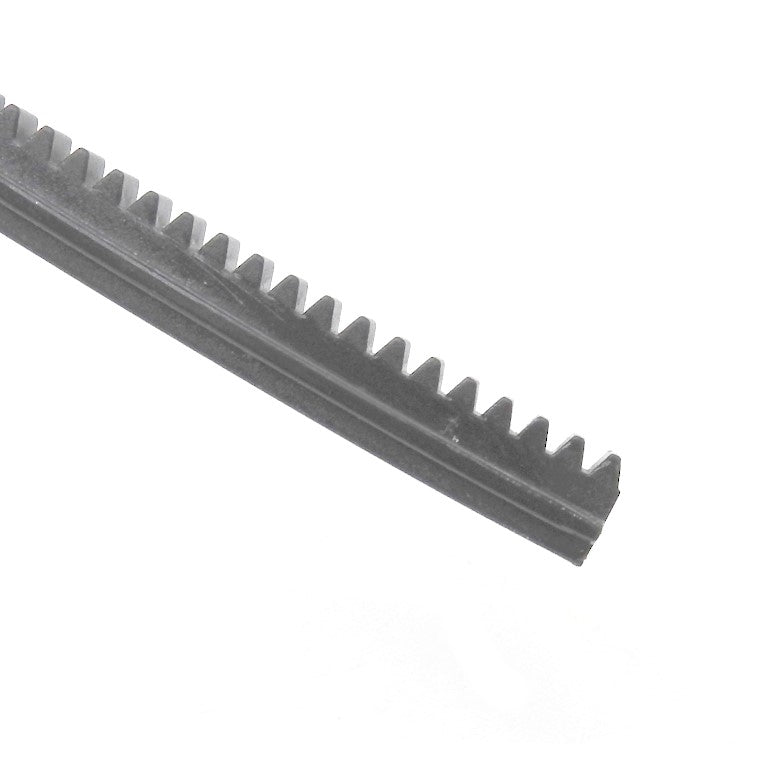

Module 1.0 Gear Rack – Internal

AT LAST A RACK AND PINION SYSTEM FOR V-SLOT!

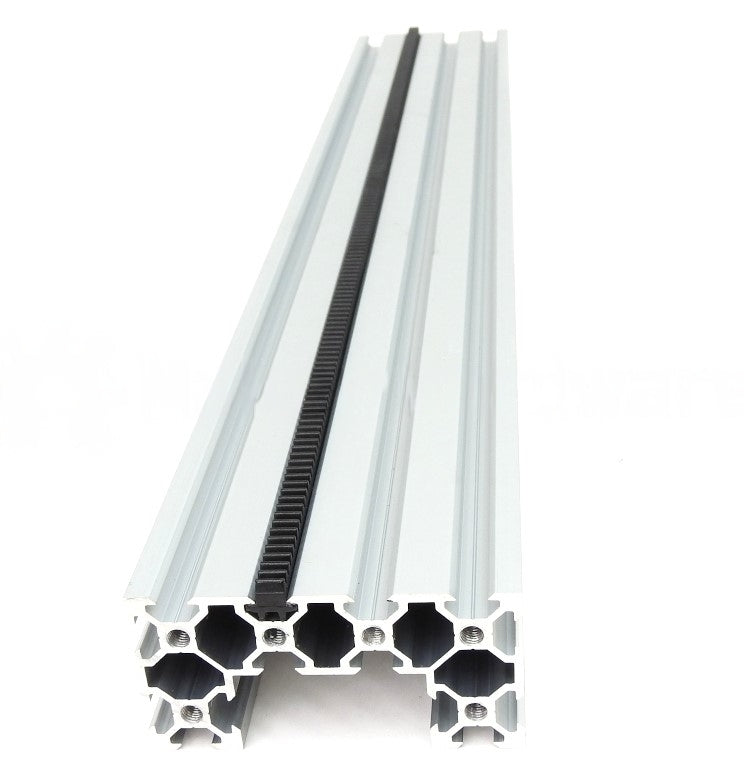

The Internal Gear Rack is designed to slide inside the channel of our V-Slot Linear Rail and works with all our different V-Slot profiles. Simply slide the gear rack into the V-Slot Channel and secure it in place using a T-Nut and Bolt on each end.

The Internal Gear Rack is the perfect replacement transmission to a lead screw and nut block system or a belt and pulley system.

Take a look at our External Gear Rack as well!

Specifications:

• Material: Polyoxymethylene (POM), also known as Delrin
• Gear type: Module 1.0
• Tolerance: DIN ISO 2768 (Fine)
• Colour: Black
• Fixing Type: Insert

Pro Tip:

• The Gear Rack also works with a standard 20mm profile T-Slot.
• Butt join multiple lengths to make an actuator any size you want.
• To avoid dust and other materials from getting in-between the teeth of the rack, mount the rack facing down

Please note:

• The gear rack is approximately 499mm in length and is designed to be compressible.
• You can add a Sliding T-Nut on both ends of the extrusion to ensure a tight fit.
• For butt joining the racks, you may apply a small drop of glue on both ends of the rack and then add a Sliding T-Nut on both ends of the extrusion.

Price $/1pc
