Pivot Arm – 40 Series

Pivot Arm: Robust and Versatile

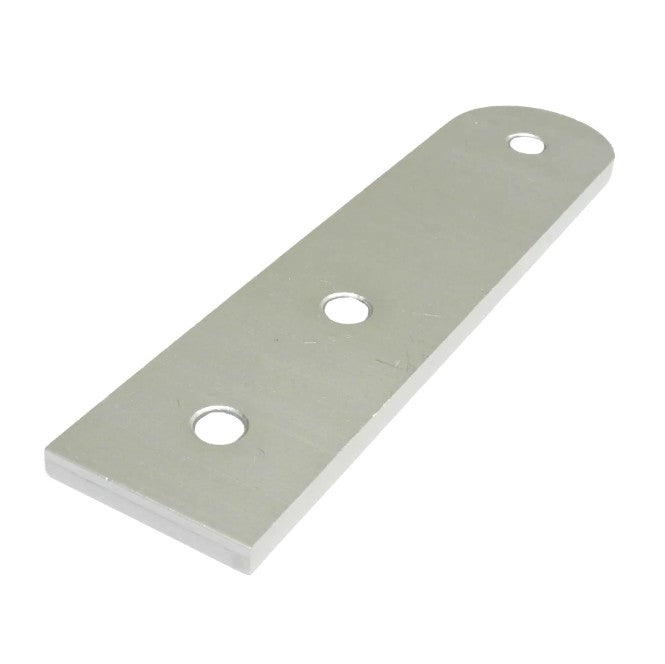

The Pivot Arm – 40 Series is a vital component in building robust and flexible structural frameworks. Ideal for a wide range of applications, this pivot arm is an external connection method compatible with 40 Series T-slot profiles. It can be used with a nub or mounted directly onto the T-slot, providing flexibility in its application. The extended design of the arm offers an enlarged clearance area, essential for pivot rotation, enabling you to create structured angle connections between profiles with ease.

This pivot arm is renowned for its durability and long-lasting performance, made from high-grade Aluminum. It features a milled finish and a clear anodized coating, ensuring not only strength but also an aesthetically pleasing appearance. The beauty of this component lies in its no-fuss assembly; it requires no machining services and is straightforward to assemble. This ease of assembly is a significant advantage, allowing for quick repositioning and reuse of the pivot arm in various configurations.

Features

• Extended Arm Design: Provides greater clearance for pivot rotation, essential for creating structured angles.
• Versatile Use: This can be used with a nub or mounted directly to the T-slot, offering flexibility in applications.
• No Machining Required: Easy to assemble without the need for specialized machining services.

Why Choose This Pivot Arm?

• Durability: Ensures a long-lasting and reliable connection between profiles.
• Flexibility: Suitable for various applications due to its extended design and ease of assembly.
• Efficiency: Simplifies assembly and reconfiguration, saving time and resources.

Specifications

• Material: Aluminium 6063-T5
• Compatibility: 40 Series T-Slot Profiles
• Weight: 95g
• Dimensions: 160x38x6mm

Drawings
